Quick Details

  • Condition: New
  • Product Type: cutting machine
  • Processing Type: Cutting Machine
  • Place of Origin: Zhejiang, China (Mainland)
  • Brand Name: BEST
  • Model Number: lpm-150
  • Voltage: 380v
  • Power(W): 2kw
  • Dimension(L*W*H): 1200x900x1400
  • Weight: 420kg
  • Certification: CE
  • Warranty: 2years
  • After-sales Service Provided: Engineers available to service machinery overseas
  • color: blue

Packaging & Delivery

Packaging Details Waterproof fumigation wooden boxes 1200*900*1400MM
40ft Load 14 machines
Delivery Time 10days after getting deposit inadvance

Specifications

smart punching machine
1)Moulds imported material
2)speed high
3)With 1 die with machine
4)Have MC in st

1.Equipment Name :smart punching machine
2.Description:
LPM Series label Punching machine is mainly product of our company .
It is Suitable for the production of labels ,playing cards , aluminum plastic, New year
card, note book, envelopes of any design or size .with an average production of about
900.000 production of high precision hourly. This machine adopts hydraulic pressure
 system. with a push-cube self adjusting to every position of the "V" hold where the pack is positioned in order to obtain
a homogeneous pression and distribution of the paper .the working table has a photoelectric cell which gives
 maximum safety to the operator and allows a quick change of the hollow punch and is adaptable both for low and medium
oduction. The working process is completely stability. The die cutting products surface is smooth, and the size is unified
and regular with high precision. NOTE: the quality of paper products and knife are in a great relationship.
Our company's knife is after completion of the process of the six high-quality die, characterized by high accuracy, high hardness, wear-resistant,Durable.

3. Hydraulic label cutting machine Technical Specification :
LPM-150 Label Cutting Machine
A.maximum cutting size:( 160mm round shape ,square shape:120*120mm)
B.minimum cutting size:30*20mm(if there is any even smaller , need to let us know before order)
C.stack height :200mm
D.cuttingpressure:16KNE.working speed:66mm/s ( One time cutting is 12cm , one minute can cut around 15-20times )F.power:2.2kw
G.net weight: 360kg
H.package size1200*850*1400mm

4.Other model machine technical details :
  LPM220 Label punching machine
A.maximum cutting size:190*190mm round
B.minimum cutting size60*40mm  (smaller than this dia, please confirm before order )
C.stack height 250mm
D.cuttingpressure30KN
E.working speed66mm/s
F.Power2.2kw
G.net weight420kg F.package size1450*850*1500mm
LPM280 Label punching machine
A.maximum cutting size:190*190mm (round 250mm)
B.minimum cutting size:105*75mm(if there is any even smaller , need to let us know before order)
C.stack height :250mm
D.cuttingpressure:40KNE.working speed:66mm/s
( One time cutting is 12cm , one minute can cut around 15-20times )
F.power:3kw
G.net weight: 560kg
H.package size:2300*850*1600MM

LPM-400 Label punching machine
A.  maximum cutting size:270*270 MM
B.minimum cutting size:120*120mm
C.stack height :250mm
D.cuttingpressure:50KN
E.working speed:66mm/s
 F.Power:4kw
G.net weight: 900kg
H.package size:2500*1040*1600MM

LPM-500 Label punching machine
A.maximum cutting size:340*340 MM
B.minimum cutting size:150*150mm
C.stack height :250mm
D.cuttingpressure:50KN
E.working speed:66mm/sF.
F.Power:4kw
G.net weight: 1140kg
H.package size:2500*1040*1660MM

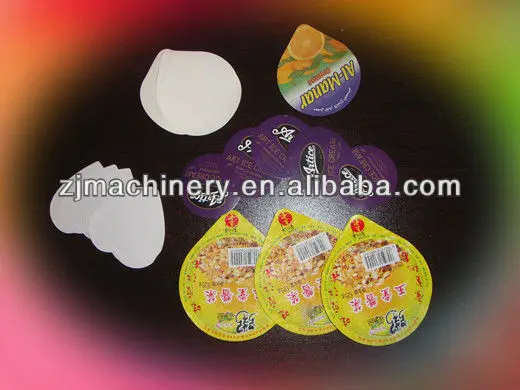

5.Samples:

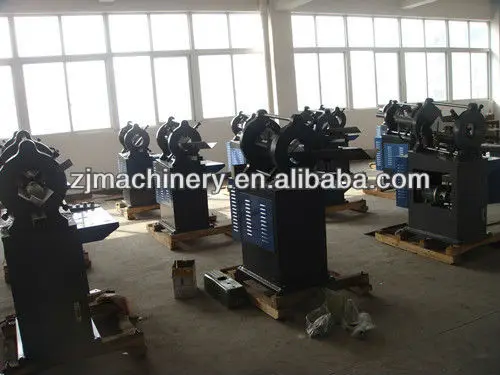

6.Big Production Show:

7.Paper Cutter Machine matched for Posting cutting machine as some customer choice:

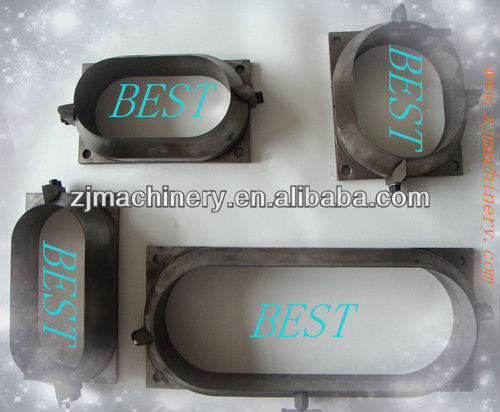

Cutting dies:
We can supply both normal cheap dies and best dies which material imported .

9.Export Standard Wooden Box

 When you order 1-2sets of label cutting machines , we advice you to go by consolidate. When you buy more than 2 sets ,
 you can ship by container . 20 FT can load 10machines , 40FT can load 20machines

10.Compare to other supplier , our advantages as follow :
a.We are have biggest production
b.80%of our label cutting machines are for export , so our machine is following closely to quality.
C.We have more experience for others for the moulds production . d.delivery time fast.
F.Faithful to all of our customers.
 G.Price reasonable.

11.Certificate :
You are welcome to purchase our equipment!
12.Contact Details :
